The bottleneck at the start of the dopamine pathway

There is an old puzzle in the treatment of dopamine disorders. When a patient cannot make enough dopamine, clinicians do not give them dopamine. They give levodopa — L-DOPA — a molecule that is biologically inert until the body converts it into the real thing. Handing someone a precursor instead of the product looks like an unnecessary extra step.

It isn’t. It is a bypass, and what it bypasses is a single enzyme.

That enzyme is tyrosine hydroxylase, and the clearest demonstration of what it does comes from the rare cases where it is broken outright. Children born with recessive variants in the TH gene have low brain dopamine and noradrenaline and a strikingly variable clinical picture — at the severe end, encephalopathy or infantile parkinsonism with motor delay; at the milder end, a dystonia that appears later in childhood, or in some patients a presentation that looks mostly like myopathy. In a series of twelve such patients, levodopa was the mainstay of treatment, and outcomes in the milder group were uniformly good even when diagnosis had been delayed by a decade.⁹ Give these patients the product of the reaction their enzyme cannot perform, and the pathway resumes.

The same logic holds in mice, and more starkly. When both copies of the TH gene are inactivated, about 90% of homozygous embryos die between embryonic days 11.5 and 15.5, apparently from cardiovascular failure. Feed L-DOPA to the pregnant dam and the mutants are rescued in the womb — but without continued treatment they die before weaning.³ Catecholamines are not a refinement layered onto a finished animal. They are load-bearing from mid-gestation onward.

Why one step matters more than the others

Nagatsu, Levitt and Udenfriend characterized tyrosine hydroxylase in 1964 and placed it at the head of the catecholamine pathway.¹ The reaction it performs is a hydroxylation: L-tyrosine becomes L-DOPA, using tetrahydrobiopterin and molecular oxygen as co-substrates.² Three enzymes act downstream — a decarboxylation to dopamine, a hydroxylation to noradrenaline, a methylation to adrenaline — and none of them can move faster than the supply TH provides.

L-Tyrosine  —TH→  L-DOPA  —AADC→  Dopamine  —DBH→  Noradrenaline  —PNMT→  Adrenaline

“Rate-limiting” is a phrase that gets repeated so often it stops carrying meaning, so it is worth being concrete about the consequence. Most enzymes in a biosynthetic pathway behave like sections of pipe — widen one and nothing much changes, because something else is the constraint. A rate-limiting enzyme behaves like a valve. Tyrosine is abundant; a neuron is not short of raw material. What limits how much dopamine it can produce is how much active TH it is carrying at that moment. Control the valve and you control the output.

A cell that has evolved a valve will also evolve elaborate ways of turning it.

An enzyme the cell watches closely

And elaborate is the right word. TH is not a lone catalytic unit but a multi-domain, self-assembling protein. Recombinant human isoform 1 resolves as a mixture of enzymatically stable tetramers — about 86% — and octamers at roughly 14%, with little interconversion between the two, alongside small amounts of longer-chain assemblies visible by electron microscopy.⁷ Each subunit pairs an N-terminal regulatory region with a C-terminal catalytic domain, and it is the regulatory end that the cell manipulates.

It manipulates it in at least three ways. The enzyme is phosphorylated at four serine residues — Ser8, Ser19, Ser31 and Ser40 — by multiple kinases and dephosphorylated by two phosphatases, which means the amount of TH protein in a cell and the amount of TH activity are genuinely different quantities.⁴² The pathway’s own end products inhibit it: dopamine binds TH in competition with tetrahydrobiopterin, a tidy feedback loop in which the neurotransmitter throttles its own synthesis.² And the enzyme is chaperoned. Cryo-electron microscopy shows two monomers of the J-domain protein DNAJC12 bound to each TH tetramer, each embracing one of the regulatory-domain dimers and leaving the active sites clear — an arrangement that stabilizes the enzyme and delays its aggregation.⁸

That last detail turns out to matter clinically. Pathogenic variants of DNAJC12 cause parkinsonism, and they do it by compromising the interaction with TH rather than by touching TH itself.⁸ Some TH variants work the same structural way: two dystonia-associated substitutions sitting near predicted subunit interfaces, R410P and D467G, shift the enzyme from its usual tetramer-and-octamer mixture into mixtures of tetramers and dimers. The chemistry of the active site is intact; the architecture that holds it together is not.⁷

One practical footnote for anyone working across species. The human gene produces four isozymes, TH1 through TH4, by alternative splicing of the pre-mRNA⁵ — a complexity rodents do not share, with hTH1 described as the isoform resembling rat TH.⁶ The protein runs at about 60 kDa.²²

Which cells carry it

Because TH heads the pathway for all three catecholamines, every catecholaminergic cell expresses it: the dopaminergic neurons of the midbrain, the noradrenergic neurons of the locus coeruleus and brainstem, and the adrenergic cells of the adrenal medulla.³⁴ This is a point frequently glossed over. TH marks catecholaminergic neurons, not dopaminergic ones specifically. Within a well-defined nucleus the anatomy settles the question — a TH-positive cell in the substantia nigra pars compacta is dopaminergic — but in dissociated culture, in a graft, in induced neurons or in peripheral tissue, TH alone cannot establish identity and needs a partner such as the dopamine transporter or VMAT2 to do so.

What the bottleneck looks like in disease

The connection between nigral pathology and parkinsonian signs was drawn through clinical, morphological and neurochemical correlation more than fifty years ago.¹⁰ Filling in the numbers took considerably longer, and the picture that emerged is one of alarming reserve.

Fearnley and Lees examined pigmented nigral neurons across control and parkinsonian brains and found that loss in Parkinson’s disease is exponential — roughly 45% within the first decade — and regionally selective in a way that ageing is not. The lateral ventral tier was worst affected, losing 91% on average, ahead of the medial ventral tier at 71% and the dorsal tier at 56%. Extrapolating backwards to symptom onset, they calculated around 68% loss in the lateral ventral tier and 48% across the caudal nigra as a whole. Normal ageing removes about 4.7% per decade, and takes a different set of cells.¹¹

Macaques lesioned progressively with MPTP put the threshold on firmer experimental ground. Parkinsonian signs appeared at a 43.2% loss of TH-immunopositive nigral neurons — accompanied by 80.3% and 81.6% losses of striatal dopamine transporter binding and dopamine content respectively.¹² Read those three figures together and the sequence becomes clear: the axon terminals in the striatum fail long before the cell bodies in the midbrain disappear. Mouse genetic models show the same order of events directly, with striatal terminals expressing TH, VMAT2 and DAT turning dystrophic and swollen weeks before any measurable loss of nigral somata.¹⁴

Nor is the population at risk uniform. Single-nucleus profiling of 387,483 human midbrain nuclei, including 22,048 dopaminergic neuron profiles, resolved ten distinct dopaminergic populations — and found that one of them, marked by AGTR1 and confined to the ventral tier of the pars compacta, is both the most susceptible to loss in Parkinson’s and the one specifically enriched for the disease’s inherited risk.¹⁵ “Dopaminergic neuron” is a category with internal structure, and the disease finds the seam. Which toxin or genetic model a laboratory chooses determines which part of that vulnerability it can see.¹⁶

The story also extends beyond the midbrain. Autopsy evidence places the noradrenergic locus coeruleus among the very earliest regions to accumulate hyperphosphorylated tau in Alzheimer’s disease, and lower in vivo measures of locus coeruleus integrity track with cortical thinning in older individuals carrying elevated amyloid or tau.¹⁷ The same enzyme that reports dopaminergic loss in one disease reports noradrenergic loss in another that is usually described in entirely different language.

Making the bottleneck visible

All of which raises a practical question: how do you find these neurons in the first place? They are not distinguishable by shape. In human tissue the dopaminergic ones carry neuromelanin and can be picked out by eye — but rodent models form far lower levels of the pigment, barely detectable, and rodents are where most of the experimental work happens.²⁵ It is a species difference with real translational consequences, and it removes the most convenient landmark exactly where it would be most useful.

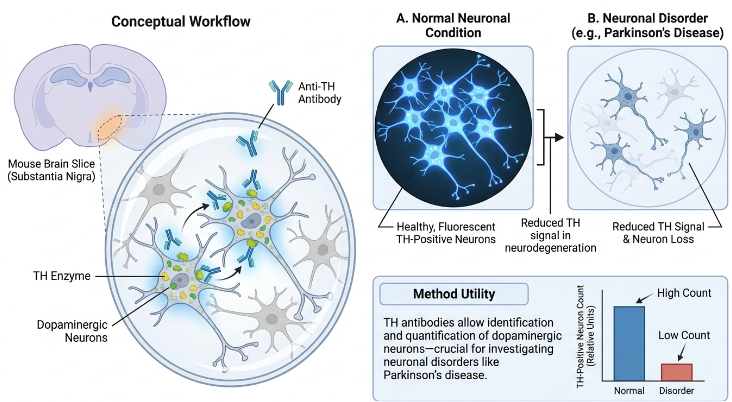

The answer, for decades now, has been to stain for the enzyme itself. An antibody raised against tyrosine hydroxylase, applied to a brain section, binds the protein inside catecholaminergic cells and renders an otherwise invisible population visible — and, more importantly, countable.

Those numbers hold up unusually well. In the C57BL/6J mouse, painstaking serial reconstruction of the substantia nigra pars compacta yields 8,305 ± 540 dopaminergic neurons — and when the same structure is estimated by model-based and design-based stereology instead, the answers come back as 8,002 ± 91 and 8,716 ± 338, statistically indistinguishable from the reconstruction and from each other.¹⁸ The sampling method underlying most of this work, the optical fractionator, produces estimates free of assumptions about cell size and shape and unaffected by tissue shrinkage, typically from only 100–200 counted cells per animal.¹⁹ More recently, convolutional networks trained on whole-slide images have been validated against that published stereology in both rat and mouse.²⁰

The thing the count cannot tell you. A drop in TH-positive cell number is not a death toll. It is the sum of two different events — neurons that died, and neurons that are alive but have dialled the enzyme down below what the stain can detect.

Post-mortem human tissue makes the gap visible. In Parkinson’s brains examined across the full range of disease durations, melanin-containing nigral neurons outnumbered TH-immunoreactive ones at every time point, and the loss of melanized cells lagged well behind the loss of dopaminergic markers.¹³ Some of the neurons missing from a TH count are still in the tissue.

This matters most for the questions people most want to answer. If an intervention is being tested for neuroprotection, a TH count alone cannot distinguish a compound that kept neurons alive from one that merely restored their enzyme expression; both produce the same bar chart. The fix is unglamorous and well established — co-label with something that does not depend on dopaminergic phenotype, a pan-neuronal marker in rodent tissue or neuromelanin in human, and report both figures.

It is also why the antibody itself deserves scrutiny. The International Working Group for Antibody Validation set out five conceptual strategies for validation, applied according to the application at hand rather than as a universal checklist.²¹ TH is an awkward case for one of the usual approaches: because homozygous null mice die in mid-gestation without rescue,³ knockout tissue is not a control one can simply order. The weight falls instead on orthogonal evidence — the expected band at roughly 60 kDa, the expected anatomical distribution, and agreement between independent antibodies raised against different preparations of the antigen.

A valve, and a window

Tyrosine hydroxylase occupies an unusual double position in neuroscience. It is the physiological bottleneck that determines how much catecholamine the nervous system can make — which is why breaking it, whether through a recessive variant, a destabilized chaperone interaction, or the slow attrition of Parkinson’s disease, produces such consistent consequences. And it is the most informative single antigen available for locating the cells that do the making.

Those two roles are connected, and the connection is the caution. The enzyme is visible precisely because neurons regulate it so heavily, and a protein under that much regulation is a protein whose abundance can change for reasons that have nothing to do with whether the cell is alive. What makes tyrosine hydroxylase such a good window is exactly what makes it worth looking through carefully.

Reagents referenced

The anti-TH antibodies described in this article are catalogued by Pel-Freez Biologicals as P60101-150 (sheep polyclonal)²² and P40101-150 (rabbit polyclonal).²³ Related reagents include P41301-100 against TH phosphorylated at Ser40, and the dopamine transporter antibodies P40006-100 and P40501-100.²⁴ All are for research use only and are not for use in diagnostic procedures.

References

1. Nagatsu T, Levitt M, Udenfriend S. Tyrosine hydroxylase. The initial step in norepinephrine biosynthesis. J Biol Chem. 1964;239:2910–7. PMID 14216443
2. Daubner SC, Le T, Wang S. Tyrosine hydroxylase and regulation of dopamine synthesis. Arch Biochem Biophys. 2011;508(1):1–12. doi:10.1016/j.abb.2010.12.017
3. Zhou QY, Quaife CJ, Palmiter RD. Targeted disruption of the tyrosine hydroxylase gene reveals that catecholamines are required for mouse fetal development. Nature. 1995;374(6523):640–3. doi:10.1038/374640a0
4. Dunkley PR, Dickson PW. Tyrosine hydroxylase phosphorylation in vivo. J Neurochem. 2019;149(6):706–728. doi:10.1111/jnc.14675
5. Haavik J, Le Bourdellès B, Martínez A, Flatmark T, Mallet J. Recombinant human tyrosine hydroxylase isozymes. Reconstitution with iron and inhibitory effect of other metal ions. Eur J Biochem. 1991;199(2):371–8. doi:10.1111/j.1432-1033.1991.tb16133.x
6. Alterio J, Ravassard P, Haavik J, et al. Human tyrosine hydroxylase isoforms: inhibition by excess tetrahydropterin and unusual behavior of isoform 3 after cAMP-dependent protein kinase phosphorylation. J Biol Chem. 1998;273(17):10196–201. doi:10.1074/jbc.273.17.10196
7. Szigetvari PD, Muruganandam G, Kallio JP, et al. The quaternary structure of human tyrosine hydroxylase: effects of dystonia-associated missense variants on oligomeric state and enzyme activity. J Neurochem. 2019;148(2):291–306. doi:10.1111/jnc.14624
8. Tai MDS, Ochoa L, Flydal MI, et al. Structural recognition and stabilization of tyrosine hydroxylase by the J-domain protein DNAJC12. Nat Commun. 2025;16(1):2755. doi:10.1038/s41467-025-57733-6
9. Yeung WL, Wong VCN, Chan KY, et al. Expanding phenotype and clinical analysis of tyrosine hydroxylase deficiency. J Child Neurol. 2011;26(2):179–87. doi:10.1177/0883073810377014
10. Bernheimer H, Birkmayer W, Hornykiewicz O, Jellinger K, Seitelberger F. Brain dopamine and the syndromes of Parkinson and Huntington. Clinical, morphological and neurochemical correlations. J Neurol Sci. 1973;20(4):415–55. doi:10.1016/0022-510x(73)90175-5
11. Fearnley JM, Lees AJ. Ageing and Parkinson’s disease: substantia nigra regional selectivity. Brain. 1991;114(Pt 5):2283–301. doi:10.1093/brain/114.5.2283
12. Bezard E, Dovero S, Prunier C, et al. Relationship between the appearance of symptoms and the level of nigrostriatal degeneration in a progressive MPTP-lesioned macaque model of Parkinson’s disease. J Neurosci. 2001;21(17):6853–61. doi:10.1523/JNEUROSCI.21-17-06853.2001
13. Kordower JH, Olanow CW, Dodiya HB, et al. Disease duration and the integrity of the nigrostriatal system in Parkinson’s disease. Brain. 2013;136(Pt 8):2419–31. doi:10.1093/brain/awt192
14. Nordström U, Beauvais G, Ghosh A, et al. Progressive nigrostriatal terminal dysfunction and degeneration in the engrailed1 heterozygous mouse model of Parkinson’s disease. Neurobiol Dis. 2015;73:70–82. doi:10.1016/j.nbd.2014.09.012
15. Kamath T, Abdulraouf A, Burris SJ, et al. Single-cell genomic profiling of human dopamine neurons identifies a population that selectively degenerates in Parkinson’s disease. Nat Neurosci. 2022;25(5):588–595. doi:10.1038/s41593-022-01061-1
16. Blesa J, Przedborski S. Parkinson’s disease: animal models and dopaminergic cell vulnerability. Front Neuroanat. 2014;8:155. doi:10.3389/fnana.2014.00155
17. Engels-Domínguez N, Koops EA, Hsieh S, et al. Lower in vivo locus coeruleus integrity is associated with lower cortical thickness in older individuals with elevated Alzheimer’s pathology: a cohort study. Alzheimers Res Ther. 2024;16(1):129. doi:10.1186/s13195-024-01500-0
18. Baquet ZC, Williams D, Brody J, Smeyne RJ. A comparison of model-based (2D) and design-based (3D) stereological methods for estimating cell number in the substantia nigra pars compacta (SNpc) of the C57BL/6J mouse. Neuroscience. 2009;161(4):1082–90. doi:10.1016/j.neuroscience.2009.04.031
19. West MJ, Slomianka L, Gundersen HJ. Unbiased stereological estimation of the total number of neurons in the subdivisions of the rat hippocampus using the optical fractionator. Anat Rec. 1991;231(4):482–97. doi:10.1002/ar.1092310411
20. Penttinen AM, Parkkinen I, Blom S, et al. Implementation of deep neural networks to count dopamine neurons in substantia nigra. Eur J Neurosci. 2018;48(6):2354–2361. doi:10.1111/ejn.14129
21. Uhlen M, Bandrowski A, Carr S, et al. A proposal for validation of antibodies. Nat Methods. 2016;13(10):823–7. doi:10.1038/nmeth.3995
22. Pel-Freez Biologicals. Product data sheet: Anti-Tyrosine Hydroxylase Antibody, P60101-150 (Rev. 02). Datasheet PDF
23. Pel-Freez Biologicals. Rabbit Anti-Tyrosine Hydroxylase, P40101-150. RRID:AB_2617184
24. Pel-Freez Biologicals. Neuroscience antibodies catalog — P41301-100 Rabbit Anti-P-Tyrosine Hydroxylase (Ser40); P40006-100 Rabbit Dopamine Transporter EL-2; P40501-100 Rabbit Dopamine Transporter C-Terminus. Catalog
25. Lawana V, Um SY, Foguth RM, Cannon JR. Neuromelanin formation exacerbates HAA-induced mitochondrial toxicity and mitophagy impairments. Neurotoxicology. 2020;81:147–160. doi:10.1016/j.neuro.2020.10.005

Sourcing note. Primary literature located through PubMed; every quantitative figure was taken from the source article’s own abstract or record, and product specifications from the current Pel-Freez datasheets and product pages. Findings are reported at the grain of the study that produced them — human post-mortem, non-human primate, or rodent — and those grains are not interchangeable.
