Dopamine's life after synthesis is a transport problem

Tyrosine hydroxylase decides how much dopamine gets made. Two transporters decide what happens to it next: VMAT2 loads it into vesicles, and DAT pulls it back out of the extracellular space. Between them they set how much dopamine is available and for how long — and they are the direct molecular targets of cocaine, amphetamine, methylphenidate, reserpine, and tetrabenazine.

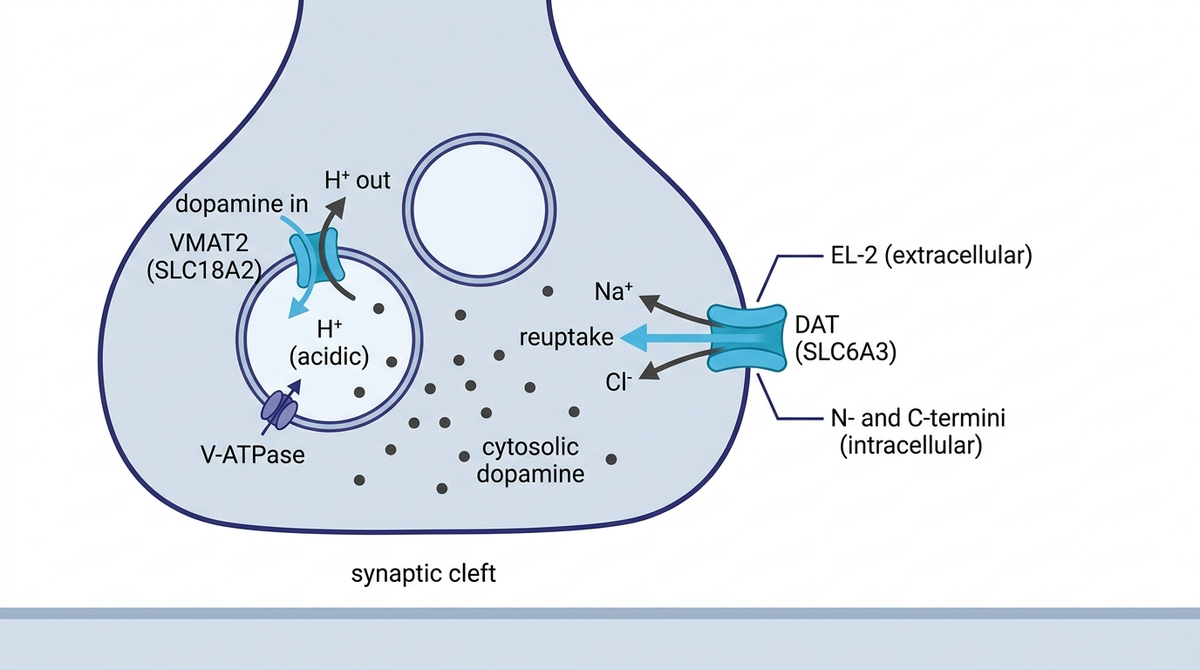

Two transporters, two directions

A dopaminergic terminal has to solve two problems that pull in opposite directions. It has to concentrate dopamine into vesicles at millimolar levels so that a single fusion event produces a usable signal. And it has to clear dopamine from the extracellular space fast enough that the signal has an end.

The vesicular monoamine transporter 2 (VMAT2, SLC18A2) solves the first. The dopamine transporter (DAT, SLC6A3) solves the second. They belong to unrelated protein families, run on different energy sources, and sit in different membranes — but neither works without the other, and the same terminal expresses both.

One subtlety governs how these antibodies should be used. DAT is dopamine-selective: its mRNA is confined to the substantia nigra and ventral tegmental area ¹. VMAT2 is not — its transcript is found in the locus coeruleus, substantia nigra, and raphe ², serving noradrenergic and serotonergic neurons as readily as dopaminergic ones. DAT is therefore a stricter marker of a dopaminergic terminal than tyrosine hydroxylase, which labels all catecholaminergic neurons; VMAT2 is a broader one.

DAT: a sodium-coupled pump with a known shape

Three groups cloned the rat dopamine transporter within weeks of each other in 1991 ¹³. The sequence predicted a protein of about 620 residues with twelve hydrophobic membrane-spanning segments and clear homology to the noradrenaline and GABA transporters ¹. Expressed in heterologous cells it took up dopamine in a sodium-dependent, cocaine-sensitive fashion ¹³. That established the class: the Na⁺/Cl⁻-coupled neurotransmitter transporters, which use the inward sodium gradient to drive substrate uphill into the cytoplasm.

Structure came later and came sideways. In 2005, Gouaux and colleagues solved a bacterial homolog, LeuT from Aquifex aeolicus, bound to leucine and two sodium ions ⁴. The fold it revealed — a core of ten transmembrane segments in which helices 1–5 are related to 6–10 by a pseudo-twofold axis, with substrate and ions buried halfway across the bilayer in a water-free occluded site — became the template for the whole family ⁴. Eight years later the same group solved a eukaryotic member directly: the Drosophila melanogaster dopamine transporter at 3.0 Å, locked outward-open with the tricyclic antidepressant nortriptyline wedged between transmembrane helices 1, 3, 6, and 8 ⁵. That explained how an uptake inhibitor works — it jams the transporter open and blocks isomerization to the inward-facing state — and added eukaryotic features LeuT lacks, including a kink in TM12, a carboxy-terminal latch helix capping the cytoplasmic gate, and a bound cholesterol ⁵.

Two facts from that topology matter enormously for antibody work. The amino and carboxy termini are both cytoplasmic. The second extracellular loop, between TM3 and TM4, is by far the largest extracellular segment, and it is the part of the protein that faces the synaptic cleft.

This was demonstrated experimentally before either structure. Antipeptide antisera raised against the noradrenaline transporter showed that N-terminal and C-terminal antibodies detected the transporter only in permeabilized cells, while antisera against the second and fourth extracellular loops gave fluorescence on intact cells — and the second-loop antiserum also immunoprecipitated the human dopamine transporter ⁶. Immunogold electron microscopy of rat striatum using monoclonal antibodies against the DAT N-terminus and against the second extracellular loop placed the two epitopes on opposite faces of the same membranes, confirming the predicted topology directly in tissue ⁷.

Regulation and state: DAT is a moving target

DAT abundance in a cell is not the same as DAT at the surface, and this is not a small effect.

Activating protein kinase C with phorbol esters reduces dopamine uptake by lowering V_max without changing K_m — the transporters are not slowed, they are removed ⁸. Live-cell imaging of GFP-tagged human DAT showed the mechanism: rapid clathrin-mediated, dynamin-dependent endocytosis into early endosomes, followed by targeting to the endosomal/lysosomal pathway and complete degradation within two hours of PKC activation ⁸. The signal that triggers this is written on the cytoplasmic N-terminus, in a cluster of serines at its distal end ⁹.

Amphetamine exploits the same protein from the other side. Amphetamines act by two linked mechanisms: they redistribute catecholamine from synaptic vesicles into the cytosol, and they induce reverse transport of transmitter out through the plasma membrane carrier ¹⁰. That efflux is not passive leak — it is regulated. Ca²⁺/calmodulin-dependent protein kinase IIα binds the distal DAT C-terminus, phosphorylates serines in the distal N-terminus, and is required for amphetamine-induced dopamine efflux both in cells and, measured by chronoamperometry, in vivo ¹¹.

Threonine 53 sits apart from that serine cluster. It is a membrane-proximal, proline-directed phosphorylation site on the cytoplasmic N-terminus, and it was confirmed in rodent striatal tissue by mass spectrometry and by a phospho-specific antibody raised against it ⁹. What is actually published about it is specific and worth quoting accurately: basal phosphorylation occurs at a stoichiometry of roughly 50%, it is strongly increased by phorbol esters and by protein phosphatase inhibitors, and mutating Thr53 to prevent phosphorylation reduces dopamine transport V_max and abolishes amphetamine-stimulated substrate efflux almost entirely ⁹. It is a site that reports on a signaling state, not a site whose function is fully mapped.

VMAT2: running on protons

VMAT2 was cloned by two routes in 1992. One selected a cDNA that conferred resistance to MPP⁺ — the active metabolite of MPTP — and found a protein with twelve transmembrane domains homologous to bacterial drug-resistance transporters ¹². The other cloned it by expression and characterized its pharmacology: ATP-dependent uptake, abolished by the protonophore FCCP and by an inhibitor of the vacuolar H⁺-ATPase, with an inhibitor rank order of reserpine > tetrabenazine > serotonin > dopamine > noradrenaline > adrenaline ². VMAT2 is a proton-monoamine antiporter. The V-ATPase acidifies the vesicle; VMAT2 spends that proton gradient to pull monoamines in.

Recent cryo-EM structures of human VMAT2 have captured lumen-facing, occluded, and cytosol-facing conformations bound to serotonin, tetrabenazine, and reserpine, and show that tetrabenazine induces a rearrangement of TM2 and TM7 beyond the usual rocker-switch motion ¹³.

The consequences of losing VMAT2 are severe and instructive. VMAT2-null mice move little, feed poorly, and die within days of birth, with drastically reduced brain monoamines — yet their monoamine cell groups and projections are anatomically indistinguishable from wild type ¹⁴. Mice expressing roughly 5% of normal VMAT2 survive and develop an age-associated, progressive nigrostriatal degeneration: cysteinyl adducts to L-DOPA and DOPAC, protein carbonyls and 3-nitrotyrosine, α-synuclein accumulation, loss of substantia nigra pars compacta neurons, and an L-DOPA-responsive motor deficit ¹⁵. The interpretation is that cytosolic dopamine is the hazard, and packaging it is simultaneously neurotransmission and neuroprotection ¹⁶.

What made these two proteins clinically famous

Reserpine and tetrabenazine both block VMAT2; tetrabenazine is used for hyperkinetic movement disorders, most consistently chorea including Huntington's disease chorea, and for tardive dyskinesia and tics ¹⁷. Methylphenidate blocks DAT: an oral 60 mg dose occupies about 60% of striatal DAT in healthy adults ¹⁸. Cocaine and amphetamine have no locomotor effect at all in DAT-knockout mice, in which extracellular dopamine persists at least 100 times longer than normal ¹⁹. Loss-of-function variants in SLC6A3 cause dopamine transporter deficiency syndrome, an infantile parkinsonism-dystonia in which the mutant protein shows reduced transport activity, reduced cell-surface expression, and aberrant glycosylation ²⁰.

Both proteins are also the basis of the clinical imaging that underwrites Parkinson's trials. DAT-SPECT with ioflupane I 123 distinguishes parkinsonian from non-parkinsonian syndromes in clinically uncertain cases with diagnostic effectiveness in the low-to-high 90s across age, cognitive, and motor-subtype subgroups ²¹. VMAT2 PET with (+)-[¹¹C]dihydrotetrabenazine shows reductions of about 61% in putamen and 43% in caudate in Parkinson's disease, against an age-related decline in controls of about 0.77% per year ²².

That imaging signal is a binding measurement, not a cell count — which is exactly where immunohistochemistry earns its place. In a lactacystin rat model, the in vivo decline in ¹⁸F-fluoropropyl-DTBZ uptake was confirmed against ex vivo autoradiography and against TH and VMAT2 immunohistochemistry on the same brains ²³. Antibodies are the bridge between a tracer number and the tissue.

What the antibodies actually let you do — and how to pick the epitope

This is the decision that matters, and it follows directly from the topology.

A C-terminal anti-DAT antibody reports the total transporter pool. The C-terminus is intracellular, so the epitope is only accessible after permeabilization or denaturation ⁶⁷. That makes it the default for fixed, permeabilized tissue sections and cultured neurons, and for Western blots of membrane preparations. It counts every transporter in the cell — surface, endosomal, Golgi, and degradative. In substantia nigra, that is not a rounding error: DAT immunoreactivity is found in dendritic smooth endoplasmic reticulum and in perikaryal rough and smooth ER, Golgi, and multivesicular bodies as well as at the plasma membrane ⁷.

An EL-2-directed anti-DAT antibody reports the surface pool, on living cells. Because the second extracellular loop faces out, an EL-2 antibody binds intact, unpermeabilized cells ⁶. That opens experiments a C-terminal antibody cannot do: live-cell surface labeling and flow cytometry of intact neurons or transfected cells, surface-selective immunoprecipitation, and PKC- or amphetamine-driven internalization time courses read out as loss of surface signal — without sulfo-NHS-biotin chemistry, streptavidin pulldowns, or the intracellular-leak controls those assays require. The same accessibility is what allows an EL-2 monoclonal conjugated to saporin to be taken up by dopaminergic terminals and produce a selective nigrostriatal lesion ²⁴.

Two practical notes. First, run the pair, not one or the other: surface signal divided by total signal is the trafficking measurement, and neither antibody gives it alone. Second, the second extracellular loop carries the transporter's N-linked glycans — deglycosylation shifts the mature protein to its core molecular weight ⁶ — so treat harsh denaturation, deglycosylation, and aggressive antigen retrieval as things that can cost you an EL-2 epitope that survives on live cells perfectly well.

Host species is a real experimental variable. An anti-VMAT2 raised in sheep can be co-applied with rabbit anti-DAT or rabbit anti-TH on the same section, because anti-sheep and anti-rabbit secondaries do not cross-react. Two rabbit primaries on one section require sequential protocols, tyramide amplification, or directly conjugated primaries, and every one of those adds a control. Choosing hosts at the design stage is cheaper than rescuing a triple-label at the imaging stage.

Caveat — DAT and VMAT2 immunoreactivity, like TH immunoreactivity, is a measurement of protein, not a count of terminals. In MPTP-lesioned mice, striatal TH protein persists at near-normal levels up to day 15 despite a 70% loss of nigral TH-positive neurons, and dopamine uptake in the surviving terminals is actively downregulated by day 20 at 73% nigral degeneration ²⁵. VMAT2 has been argued to be less subject to compensatory regulation than DAT, which is part of why it was pursued as a Parkinson's biomarker ²² — but it is not inert either: in VMAT2-hypomorphic mice, reduced VMAT2 itself drives down striatal DAT and TH expression ¹⁵. Read every one of these markers as a state variable. If the question is how many terminals or neurons remain, the answer needs unbiased stereology or a structural marker, not densitometry on a catecholaminergic antigen.

Choosing and reporting the reagent

The International Working Group for Antibody Validation set out five conceptual pillars — genetic strategies, orthogonal strategies, independent antibody strategies, tagged-protein expression, and immunocapture followed by mass spectrometry — to be applied in an application-specific way ²⁶. For transporters, the genetic pillar is unusually accessible: DAT-knockout and VMAT2-hypomorphic tissue both exist and are the cleanest negative controls available for this pathway ¹⁵¹⁹. For an EL-2 surface antibody, the orthogonal pillar has a natural partner in surface biotinylation or in radioligand binding to intact cells. Report the catalog number, lot, host, and epitope region in your methods — for these four reagents the epitope region is not a detail, it is the experiment.

Catalog no.	Antibody	Host
P40501	Dopamine Transporter, C-terminus	Rabbit
P40006	Dopamine Transporter, extracellular loop 2 (EL-2)	Rabbit
P60000	VMAT-2, C-terminus	Sheep
P40007	Phospho-Dopamine Transporter (Thr53)	Rabbit

References

1. Giros B, el Mestikawy S, Bertrand L, Caron MG. Cloning and functional characterization of a cocaine-sensitive dopamine transporter. FEBS Lett. 1991;295(1-3):149-54. doi:10.1016/0014-5793(91)81406-x · PMID 1765147
2. Erickson JD, Eiden LE, Hoffman BJ. Expression cloning of a reserpine-sensitive vesicular monoamine transporter. Proc Natl Acad Sci U S A. 1992;89(22):10993-7. doi:10.1073/pnas.89.22.10993 · PMID 1438304
3. Kilty JE, Lorang D, Amara SG. Cloning and expression of a cocaine-sensitive rat dopamine transporter. Science. 1991;254(5031):578-9. doi:10.1126/science.1948035 · PMID 1948035
4. Yamashita A, Singh SK, Kawate T, et al. Crystal structure of a bacterial homologue of Na+/Cl--dependent neurotransmitter transporters. Nature. 2005;437(7056):215-23. doi:10.1038/nature03978 · PMID 16041361
5. Penmatsa A, Wang KH, Gouaux E. X-ray structure of dopamine transporter elucidates antidepressant mechanism. Nature. 2013;503(7474):85-90. doi:10.1038/nature12533 · PMID 24037379
6. Brüss M, Hammermann R, Brimijoin S, Bönisch H. Antipeptide antibodies confirm the topology of the human norepinephrine transporter. J Biol Chem. 1995;270(16):9197-201. doi:10.1074/jbc.270.16.9197 · PMID 7721836
7. Hersch SM, Yi H, Heilman CJ, Edwards RH, Levey AI. Subcellular localization and molecular topology of the dopamine transporter in the striatum and substantia nigra. J Comp Neurol. 1997;388(2):211-27. PMID 9368838
8. Daniels GM, Amara SG. Regulated trafficking of the human dopamine transporter. Clathrin-mediated internalization and lysosomal degradation in response to phorbol esters. J Biol Chem. 1999;274(50):35794-801. doi:10.1074/jbc.274.50.35794 · PMID 10585462
9. Foster JD, Yang JW, Moritz AE, et al. Dopamine transporter phosphorylation site threonine 53 regulates substrate reuptake and amphetamine-stimulated efflux. J Biol Chem. 2012;287(35):29702-12. doi:10.1074/jbc.M112.367706 · PMID 22722938
10. Sulzer D, Sonders MS, Poulsen NW, Galli A. Mechanisms of neurotransmitter release by amphetamines: a review. Prog Neurobiol. 2005;75(6):406-33. doi:10.1016/j.pneurobio.2005.04.003 · PMID 15955613
11. Fog JU, Khoshbouei H, Holy M, et al. Calmodulin kinase II interacts with the dopamine transporter C terminus to regulate amphetamine-induced reverse transport. Neuron. 2006;51(4):417-29. doi:10.1016/j.neuron.2006.06.028 · PMID 16908408
12. Liu Y, Peter D, Roghani A, et al. A cDNA that suppresses MPP+ toxicity encodes a vesicular amine transporter. Cell. 1992;70(4):539-51. doi:10.1016/0092-8674(92)90425-c · PMID 1505023
13. Wang Y, Zhang P, Chao Y, et al. Transport and inhibition mechanism for VMAT2-mediated synaptic vesicle loading of monoamines. Cell Res. 2024;34(1):47-57. doi:10.1038/s41422-023-00906-z · PMID 38163846
14. Fon EA, Pothos EN, Sun BC, et al. Vesicular transport regulates monoamine storage and release but is not essential for amphetamine action. Neuron. 1997;19(6):1271-83. doi:10.1016/s0896-6273(00)80418-3 · PMID 9427250
15. Caudle WM, Richardson JR, Wang MZ, et al. Reduced vesicular storage of dopamine causes progressive nigrostriatal neurodegeneration. J Neurosci. 2007;27(30):8138-48. doi:10.1523/JNEUROSCI.0319-07.2007 · PMID 17652604
16. Guillot TS, Miller GW. Protective actions of the vesicular monoamine transporter 2 (VMAT2) in monoaminergic neurons. Mol Neurobiol. 2009;39(2):149-70. doi:10.1007/s12035-009-8059-y · PMID 19259829
17. Fasano A, Bentivoglio AR. Tetrabenazine. Expert Opin Pharmacother. 2009;10(17):2883-96. doi:10.1517/14656560903386292 · PMID 19929707
18. Volkow ND, Wang GJ, Fowler JS, et al. Relationship between blockade of dopamine transporters by oral methylphenidate and the increases in extracellular dopamine: therapeutic implications. Synapse. 2002;43(3):181-7. doi:10.1002/syn.10038 · PMID 11793423
19. Giros B, Jaber M, Jones SR, Wightman RM, Caron MG. Hyperlocomotion and indifference to cocaine and amphetamine in mice lacking the dopamine transporter. Nature. 1996;379(6566):606-12. doi:10.1038/379606a0 · PMID 8628395
20. Ng J, Barral S, Waddington SN, Kurian MA. Dopamine transporter deficiency syndrome (DTDS): expanding the clinical phenotype and precision medicine approaches. Cells. 2023;12(13):1737. doi:10.3390/cells12131737 · PMID 37443770
21. Bajaj N, Hauser RA, Seibyl J, et al. Association between Hoehn and Yahr, Mini-Mental State Examination, age, and clinical syndrome predominance and diagnostic effectiveness of ioflupane I 123 injection (DaTSCAN) in subjects with clinically uncertain parkinsonian syndromes. Alzheimers Res Ther. 2014;6(5-8):67. doi:10.1186/s13195-014-0067-0 · PMID 25478029
22. Frey KA, Koeppe RA, Kilbourn MR, et al. Presynaptic monoaminergic vesicles in Parkinson's disease and normal aging. Ann Neurol. 1996;40(6):873-84. doi:10.1002/ana.410400609 · PMID 9007092
23. Weng CC, Huang SL, Chen ZA, et al. [18F]FP-(+)-DTBZ PET study in a lactacystin-treated rat model of Parkinson disease. Ann Nucl Med. 2017;31(7):506-13. doi:10.1007/s12149-017-1174-3 · PMID 28451991
24. Wiley RG, Harrison MB, Levey AI, Lappi DA. Destruction of midbrain dopaminergic neurons by using immunotoxin to dopamine transporter. Cell Mol Neurobiol. 2003;23(4-5):839-50. doi:10.1023/a:1025065306264 · PMID 14514035
25. Bezard E, Jaber M, Gonon F, et al. Adaptive changes in the nigrostriatal pathway in response to increased 1-methyl-4-phenyl-1,2,3,6-tetrahydropyridine-induced neurodegeneration in the mouse. Eur J Neurosci. 2000;12(8):2892-900. doi:10.1046/j.1460-9568.2000.00180.x · PMID 10971632
26. Uhlen M, Bandrowski A, Carr S, et al. A proposal for validation of antibodies. Nat Methods. 2016;13(10):823-7. doi:10.1038/nmeth.3995 · PMID 27595404

Sourcing note. Primary literature located through PubMed; every quantitative figure was taken from the source article’s own record. Findings are reported at the grain of the study that produced them and those grains are not interchangeable. Product specifications are from the current Pel-Freez datasheets.
